When importing inflatable wrestling mats from China, how do you test for air leakage?

To ensure zero leakage, every single mat in a bulk order must undergo a 48-hour high-pressure air retention test. The standard protocol involves inflating the mat to $1.2\times$ its working pressure (approx. $6\text{--}8 \text{ PSI$), monitoring the pressure drop with a high-precision digital gauge, and performing a manual "Soap Bubble Test" on all heat-welded seams and valves. A pressure loss of less than \$0.05 \text{ PSI}$ over 24 hours (adjusted for temperature) is considered a pass.

Table of Contents

1. How can I be sure my bulk order won't have hidden air leaks?
2. What specific leak detection methods will the factory use?
3. Can I request video proof of the air leakage test before shipping?
4. How long should my mats be inflated during the factory testing phase?
5. Interactive Leak Detection Quiz
6. Conclusion
7. References

How can I be sure my bulk order won't have hidden air leaks?

"Hidden leaks" usually occur at the microscopic level—either through pinholes in the PVC or "creep" in the glued/welded seams. To eliminate this risk, you must demand a Serial Number Tracking System.

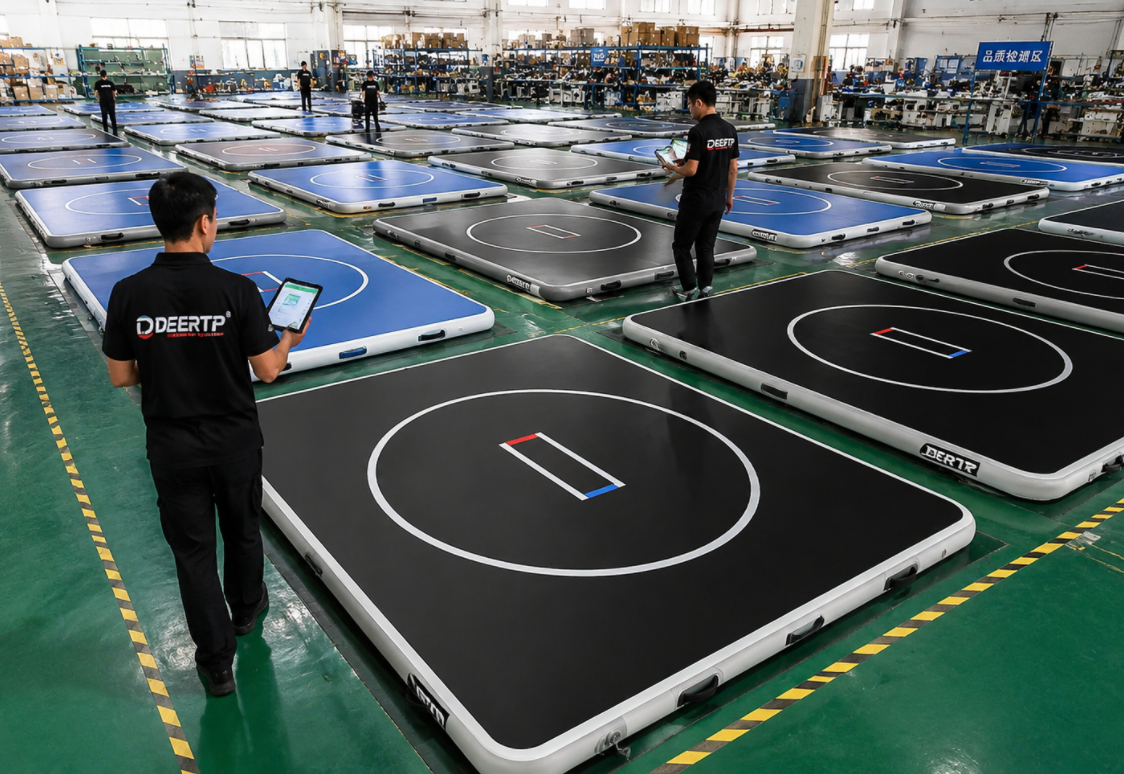

• Total QC Coverage: Ensure the factory tests 100% of the units, not just a random sample.
• Pressure Logging: Ask for a log sheet where the technician records the "Initial PSI" and " PSI" for each specific serial number.
• Valve Inspection: 90% of "leaks" are actually poorly seated Halkey-Roberts valves. Use a valve wrench to ensure they are torqued correctly before the final test.

What specific leak detection methods will the factory use?

There are three main levels of detection used in professional Chinese factories:

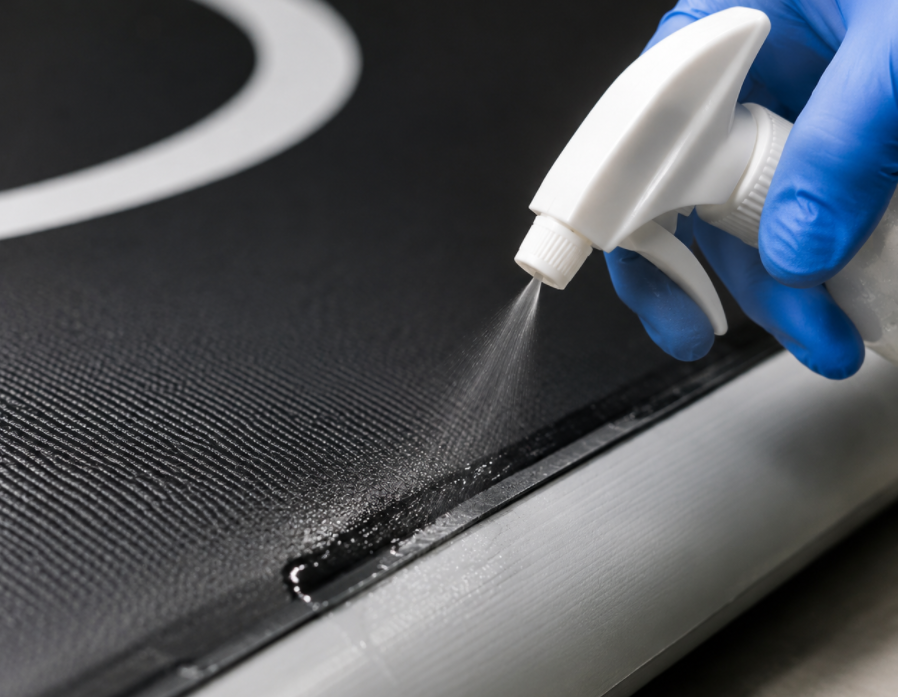

1. The Soap Bubble Test (Visual): Technicians spray a mixture of surfactant and water over seams and valves. Even a microscopic leak will create a cluster of bubbles within seconds.

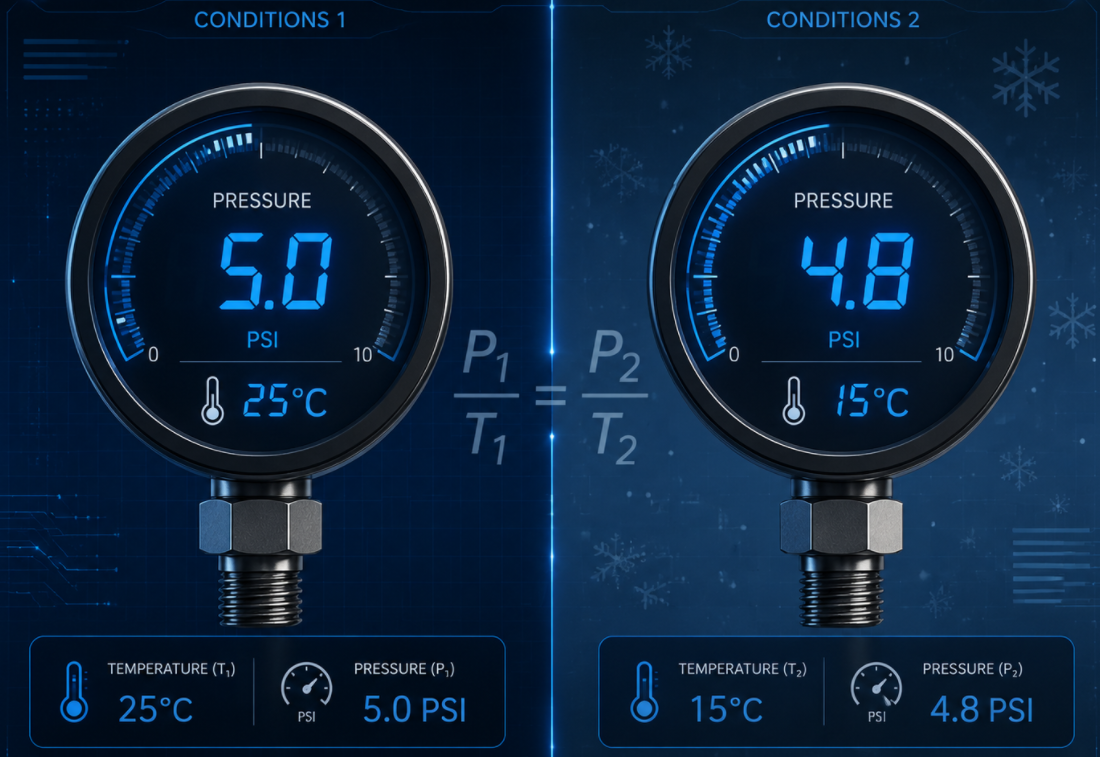

2. Pressure Gauge Monitoring (Quantitative): This uses the Ideal Gas Law. However, you must account for temperature variations using:

   $$\frac{P_1}{T_1} = \frac{P_2}{T_2}$$

   (Where $P$ is pressure and $T$ is absolute temperature in Kelvin). If the room gets colder at night, the PSI will drop naturally—this doesn't always mean a leak!
3. Ultrasonic Leak Detection (High-End): Advanced factories use ultrasonic sensors that "listen" for the high-frequency hiss of escaping air that is inaudible to the human ear.

Can I request video proof of the air leakage test before shipping?

Yes, and you absolutely should. But don't just ask for "a video." You need a Validation Video to prevent the factory from sending you old footage.

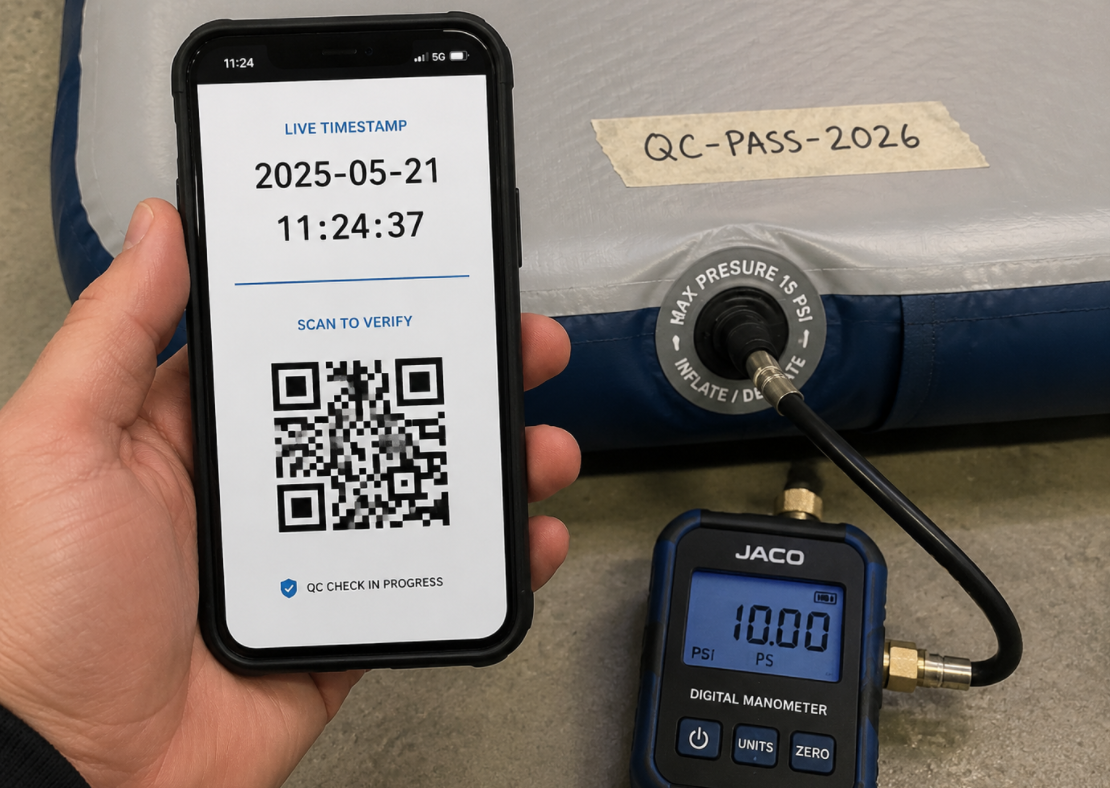

How to request a "Cheat-Proof" Video:

• The Time-Stamp: Ask the worker to show a cell phone screen with the current date/time in the frame.
• The Serial Number: The video must show the unique serial number printed on the mat, then pan to the pressure gauge showing the PSI.
• The "Marking" Method: Ask them to write your Order Number on a piece of masking tape and stick it on the mat during the 48-hour inflation period.

How long should my mats be inflated during the factory testing phase?

In the B2B world, time is money, but rushing the air test is a recipe for disaster.

• 12 Hours: Only catches major punctures or defective valves. (Insufficient for B2B).
• 24 Hours: The industry standard for retail. Catches 95% of seam "creeps."
• 48 Hours (The Gold Standard): Recommended for bulk wrestling mat imports. This duration allows the PVC and internal drop-stitch threads to fully "set" under tension. If the mat holds pressure for 48 hours, it is structurally sound for years of use.

Interactive Leak Detection Quiz

1. You notice a 0.2 PSI drop in your mat's pressure overnight when the temperature dropped by 10°C. Is the mat leaking?

• A) Yes, any drop in PSI is a leak.
• B) Not necessarily; air pressure drops naturally when temperature decreases (Gay-Lussac's Law).
• C) No, inflatable mats actually gain pressure in the cold.
• (Answer: B - You must normalize for temperature before confirming a leak.)

2. Which part of the mat is most likely to have a "hidden" leak?

• A) The center of the flat surface.
• B) The Halkey-Roberts valve or the heat-welded corner seams.
• C) The carry handles.
• (Answer: B - Valves and seam junctions are the high-stress points where leaks typically occur.)

3. What is the minimum testing time you should accept from a Chinese supplier for a professional order?

• A) 2 hours (just enough to take a photo).
• B) 24 to 48 hours.
• C) 1 week.
• (Answer: B - 24-48 hours is the professional benchmark for identifying micro-leaks.)

Conclusion

A wrestling mat that doesn't hold air is just a piece of plastic. By insisting on a 48-hour inflation window, serial-number-verified video proof, and an understanding of how temperature affects PSI, you can virtually eliminate the risk of importing "dud" products. Professionalism in the factory leads to profitability in your warehouse.
