When importing inflatable wrestling mats from China, what is the load capacity?

The load capacity of an inflatable wrestling mat is dynamic rather than static. A standard commercial-grade mat (20cm thickness) inflated to 4-5 PSI can typically support a dynamic load of 250kg to 350kg per square meter without "bottoming out." The core of this strength lies in the Drop-Stitch density, which usually ranges from 1,000 to 2,500 linear threads per square meter. For B2B importers, specifying a higher thread density (e.g., 2,500/sqm) is the key to catering to heavyweight professional athletes.

Table of Contents

1. How much weight can these mats support before bottoming out?
2. Why is high load capacity crucial for professional wrestling and BJJ gyms?
3. How do the drop-stitch density and thickness impact the maximum load?
4. Can I request structural reinforcements for extreme heavy-duty use?
5. Interactive Load Capacity Quiz
6. Conclusion
7. References

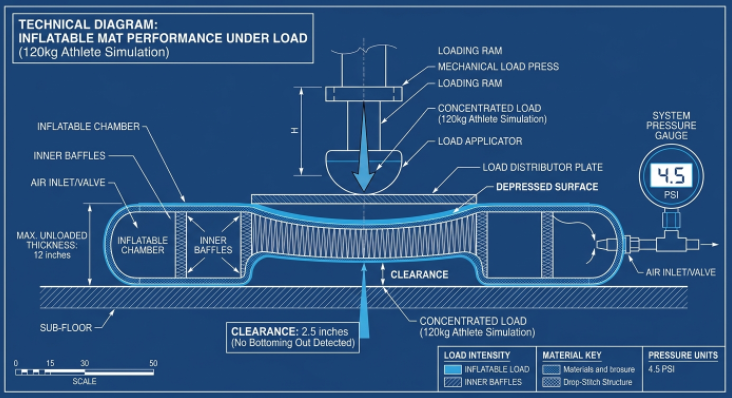

How much weight can these mats support before bottoming out?

In the world of inflatable sports equipment, "bottoming out" is the ultimate failure. It occurs when the athlete's impact force exceeds the internal air pressure's ability to displace that energy, causing the athlete to strike the hard floor.

• Static vs. Dynamic Load: While a mat can hold several stationary people, its true load capacity is tested during a "slam." For a 20cm mat at 5 PSI, it can comfortably handle a single-point impact force of roughly $3,000 \text{ to } 4,000\text{ Newtons}$(the equivalent of a \$100\text{kg}$ athlete falling from a significant height).
• The PSI Variable: Load capacity is a function of pressure. If the pressure is too low (e.g., 1.5 PSI), even a lightweight athlete may bottom out during a heel-first landing.

Why is high load capacity crucial for professional wrestling and BJJ gyms?

How do the drop-stitch density and thickness impact the maximum load?

The "skeleton" of your mat is the Double Wall Fabric (DWF).

• Linear Thread Density: Standard mats use roughly 1,000 threads per square meter. Professional "Heavy-Duty" mats utilize 2,000 to 2,500 threads per square meter. More threads mean the load is distributed across more "pillars," drastically increasing the mat's firmness and load capacity at the same PSI.
• Thickness Matters: A 10cm mat has very little "travel." A 20cm or 30cm mat allows the air more room to compress and displace, effectively increasing the load capacity by providing a larger buffer zone before bottoming out occurs.

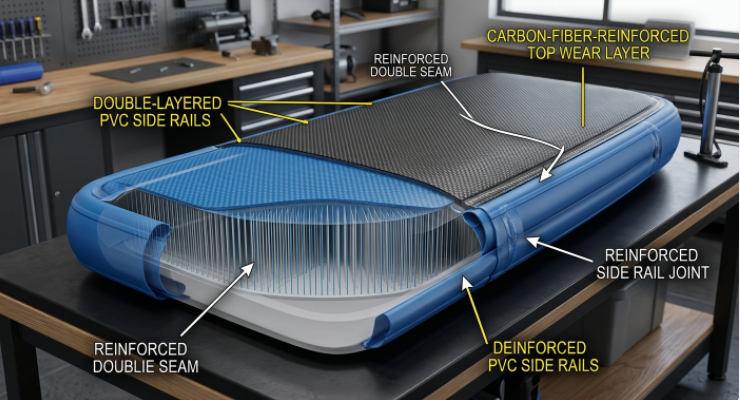

Can I request structural reinforcements for extreme heavy-duty use?

For B2B clients catering to heavyweight gyms or high-traffic centers, standard specifications may not be enough. You can request specific factory reinforcements:

• Double-Rail System: Instead of a single side-wall, the factory can add a second layer of $0.9\text{mm}$ PVC to the rails. This increases the mat's hoop stress capacity, allowing it to be safely inflated to higher PSI (up to 8-10 PSI) for extreme loads.
• Carbon Fiber DWF: Some elite Chinese manufacturers offer DWF with carbon-fiber-infused polyester threads. These threads have almost zero stretch, creating a rock-solid surface that is virtually impossible to bottom out.
• Laminated Top Layers: Adding an extra layer of $1000\text{D}$ PVC to the landing surface increases the "puncture resistance" and prevents the material from stretching under the weight of heavy equipment or multiple athletes.

Interactive Load Capacity Quiz

1. If you increase the PSI from 2.0 to 5.0, what happens to the load capacity?

• A) It decreases.
• B) It increases (the mat becomes firmer and more resistant to bottoming out).
• C) It stays the same.
• (Answer: B - Higher internal pressure provides more resistance against external force.)

2. Which factor contributes most to a mat's internal structural strength?

• A) The color of the PVC.
• B) The brand of the air pump.
• C) The density of the internal drop-stitch threads.
• (Answer: C - Thousands of polyester threads provide the vertical tension that supports weight.)

3. Why is a 20cm mat better for heavyweight wrestlers than a 10cm mat?

• A) It is easier to carry.
• B) It provides a larger "travel distance" for air displacement, preventing floor impact.
• C) It uses less air.
• (Answer: B - Thicker mats provide more room for shock absorption during heavy landings.)

Conclusion

Load capacity is the silent guardian of safety in a wrestling gym. By sourcing mats with high drop-stitch density, opting for 20cm+ thickness, and requesting double-rail reinforcements, you ensure your B2B customers receive a product that can withstand the most intense training sessions without failure. Don't just sell an inflatable mat—sell a high-capacity athletic platform.

References

• ISO 6185-4:2024: Inflatable boats — Part 4: Boats with a hull length of between 8 m and 24 m. (The foundation for high-pressure PVC seam and material stress standards). Access ISO Standard
• ASTM F355-16: Standard Test Method for Impact Attenuation of Playing Surface Systems. (The industry standard for measuring "bottoming out" and shock absorption). View ASTM Standard
• Textile World: Understanding Drop-Stitch Technology in High-Performance Inflatables. (Authoritative guide on thread density and DWF construction). Read More
